Friday, April 27, 2012

How to Make a Phone Call Programmatically in Android

 -------------------------------------------
App Name: MakeACall
Package Name: com.rdc
Android SDK: Android SDK 2.3.3 / API 10
Default Activity Name: MyActivity
-------------------------------------------


MyActivity.java


package com.rdc;

import android.app.Activity;
import android.content.Intent;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class MyActivity extends Activity implements OnClickListener {

 private Button btncall = null;

 @Override
 public void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.main);

  btncall = (Button) findViewById(R.id.btnCall);
  btncall.setOnClickListener(this);
 }

 @Override
 public void onClick(View v) {
  String mobileNo = "+919741817902";
  String uri = "tel:" + mobileNo.trim();
  Intent intent = new Intent(Intent.ACTION_CALL);
  intent.setData(Uri.parse(uri));
  startActivity(intent);
 }
}

main.xml




AndroidManifest.xml

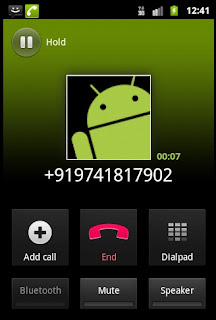

The output Screen will be like this..


You can download the complete source code zip file here : MakeACall

 cheers!!

 I'd love to hear your thoughts!

Sunday, April 15, 2012

Start Service from Activity


Some time we need to start a service from Android Activity..
how can we achieve this i am going to write step by step.

First of all we need to Create a simple application with an Activity

-------------------------------------------
App Name: Activity2Service
Package Name: com.rdc
Android SDK: Android SDK 2.3.3 / API 10
Default Activity Name: MyActivity
-------------------------------------------


"MyActivity.java"

package com.rdc;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.widget.Toast;

public class MyActivity extends Activity {

 @Override
 public void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.main);

  Log.v("Debug", "Activity has been Started..");
  Toast.makeText(getBaseContext(),
                      "Activity Started", Toast.LENGTH_SHORT)
    .show();
  Intent myIntent = new Intent(getBaseContext(), MyService.class);
  startService(myIntent);
 }
}

Then Create a Service

package com.rdc;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.util.Log;
import android.widget.Toast;

public class MyService extends Service {

 @Override
 public IBinder onBind(Intent intent) {
  return null;
 }

 @Override
 public void onCreate() {
  Log.v("Debug", "Service has been Created..");
  // code to execute when the service is first created
 }

 @Override
 public void onDestroy() {
  // code to execute when the service is shutting down
 }

 // This method has been deprecated since API 5
 /*
   @Override public void onStart(Intent intent, int startid) {
          code to execute when the service is starting up
    }*/


 @Override
 public int onStartCommand(Intent intent, int flags, int startId) {
  Log.v("Debug", "Service has been Started..");
  Toast.makeText(getBaseContext(), "Service has been Started..",
    Toast.LENGTH_SHORT).show();
  // We want this service to continue running until it's explicitly
  // stopped, so return sticky.
  return START_STICKY;
 }
}

main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="@string/hello"
    />
</LinearLayout>


Don't forget to make entry in "Manifest" file for Service

<?xml version="1.0" encoding="utf-8"?>
<manifest
 xmlns:android="http://schemas.android.com/apk/res/android"
 package="com.rdc"
 android:versionCode="1"
 android:versionName="1.0">
 <uses-sdk android:minSdkVersion="8" />

 <application
  android:icon="@drawable/icon"
  android:label="@string/app_name">
  <activity
   android:name=".MyActivity"
   android:label="@string/app_name">
   <intent-filter>
   <action android:name="android.intent.action.MAIN" />
   <category android:name="android.intent.category.LAUNCHER" />
   </intent-filter>
  </activity>
  <service
   android:enabled="true"
   android:name=".MyService">
   <intent-filter>
    <action android:name="com.rdc.MyService">
    </action>
   </intent-filter>
  </service>

 </application>

</manifest>

Now Run Application, Toast will appear..  :)

You can download the complete source code zip file here : Activity2Service

cheers!!

I'd love to hear your thoughts!

Saturday, April 7, 2012

Start Activity from Activity


Some time we need to start an Activity from Activity..
how can we achieve this i am going to write step by step.

We will create very simple app to do this work
 -------------------------------------------
App Name: Activity2Activity
Package Name: com.rdc
Android SDK: Android SDK 2.3.3 / API 10
Default Activity Name: FirstActivity
-------------------------------------------


FirstActivity.java

package com.rdc;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class FirstActivity extends Activity implements OnClickListener {

 @Override
 public void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.first);

  Button btnload = (Button) findViewById(R.id.btnfirst);
  btnload.setOnClickListener(this);

 }

 @Override
 public void onClick(View v) {
  Intent i = new Intent(FirstActivity.this, SecondActivity.class);
  startActivity(i);
 }
}

SecondActivity.java
package com.rdc;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class SecondActivity extends Activity implements OnClickListener {
 @Override
 public void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.second);

  Button btnload = (Button) findViewById(R.id.btnsecond);
  btnload.setOnClickListener(this);

 }

 @Override
 public void onClick(View v) {
  Intent i = new Intent(SecondActivity.this, FirstActivity.class);
  startActivity(i);
 }
}

first.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
 xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent">
 <TextView
  android:layout_width="fill_parent"
  android:text="I am first activity.."
  android:gravity="center"
  android:layout_height="62dp" />
 <LinearLayout
  android:id="@+id/layV"
  android:orientation="vertical"
  android:gravity="center"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent">
  <Button
   android:text="Load Second Activity"
   android:layout_height="wrap_content"
   android:layout_width="wrap_content"
   android:id="@+id/btnfirst"></Button>
 </LinearLayout>

</LinearLayout>



second.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
 xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent">
 <TextView
  android:layout_width="fill_parent"
  android:text="I am Second activity.."
  android:gravity="center"
  android:layout_height="62dp" />
 <LinearLayout
  android:id="@+id/layV"
  android:orientation="vertical"
  android:gravity="center"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent">
  <Button
   android:text="Load First Activity"
   android:layout_height="wrap_content"
   android:layout_width="wrap_content"
   android:id="@+id/btnsecond"></Button>
 </LinearLayout>

</LinearLayout>

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest
 xmlns:android="http://schemas.android.com/apk/res/android"
 package="com.rdc"
 android:versionCode="1"
 android:versionName="1.0">
 <uses-sdk android:minSdkVersion="10" />

 <application
  android:icon="@drawable/icon"
  android:label="@string/app_name">
 <activity
   android:name=".FirstActivity"
   android:label="@string/app_name">
 <intent-filter>
 <action android:name="android.intent.action.MAIN" />
 <category android:name="android.intent.category.LAUNCHER" />
 </intent-filter>
 </activity>

 <activity
   android:name=".SecondActivity"
   android:label="@string/app_name">
 <intent-filter>
 <category android:name="android.intent.category.LAUNCHER" />
 </intent-filter>
 </activity>

 </application>
</manifest>

The output Screen will be like this..


You can download the complete source code zip file here : Activity2Activity

 cheers!!

 I'd love to hear your thoughts!

Sunday, April 1, 2012

Start BroadcastReceiver from Activity

Some time we need to start a service from Android Activity..
how can we achieve this i am going to write step by step.

We will create very simple app to do this work
 -------------------------------------------
App Name: Activity2BReceiver
Package Name: com.rdc
Android SDK: Android SDK 2.3.3 / API 10
Default Activity Name: MyActivity
-------------------------------------------


MyActivity.java

package com.rdc;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;

public class MyActivity extends Activity {
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        Log.v("Debug", "Activity has been started..");
    }
}

Then Create a Broadcast Receiver

MyReceiver.java

package com.rdc;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;
import android.widget.Toast;

public class MyReceiver extends BroadcastReceiver {

 @Override
 public void onReceive(Context context, Intent intent) {
  Log.v("Debug", "SMS Broadcast Receiver has been started..");
  Toast.makeText(context, "BReceiver is watching ur message..",
    Toast.LENGTH_SHORT).show();

 }

}

main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    >
<TextView
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:text="@string/hello"
    />
</LinearLayout>


Don't forget to make entry in "Manifest" file for Receiver

<?xml version="1.0" encoding="utf-8"?>
<manifest
 xmlns:android="http://schemas.android.com/apk/res/android"
 package="com.rdc"
 android:versionCode="1"
 android:versionName="1.0">
 <uses-sdk android:minSdkVersion="10" />
 <uses-permission android:name="android.permission.RECEIVE_SMS">
 </uses-permission>
 <application
  android:icon="@drawable/icon"
  android:label="@string/app_name">
  <activity
   android:name=".MyActivity"
   android:label="@string/app_name">
   <intent-filter>
   <action android:name="android.intent.action.MAIN" />
   <category android:name="android.intent.category.LAUNCHER" />
   </intent-filter>
  </activity>
  <receiver android:name="com.rdc.MyReceiver">

   <intent-filter>
  <action android:name="android.provider.Telephony.SMS_RECEIVED" />
   </intent-filter>
  </receiver>

 </application>
</manifest>

Run this app and send message from another mobile/emulator, Receiver will notify you about new sms

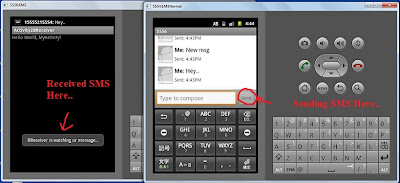

See below output screens tensted on Emulator and Real Device


You can download the complete source code zip file here : Activity2BReceiver


I'd love to hear your thoughts!
