Listen SMS-MMS Programmatically Android (Store SMS-MMS Data)

after many hours overtime i got solve this puzzle.. how can we store the incoming (sms/mms) and outgoing (sms/mms) data programmatically?.

MainActivity.java


package Com.rdc.listenSmsMms;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;

public class MainActivity extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        Log.v("In on create", "activty started..");

        //start the service to listen
        startService(new Intent(getBaseContext(),ListenSmsMmsService.class));
    }
}

ListenSmsMmsService.java

package Com.rdc.listenSmsMms;

import java.io.BufferedReader;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.util.Date;

import android.app.Service;
import android.content.ContentResolver;
import android.content.Intent;
import android.database.ContentObserver;
import android.database.Cursor;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.net.Uri;
import android.os.Environment;
import android.os.Handler;
import android.os.IBinder;
import android.util.Log;
import android.widget.Toast;

public class ListenSmsMmsService extends Service {

 private ContentResolver contentResolver;


 String substr;
 int k;

 @Override
 public IBinder onBind(Intent intent) {
  return null;
 }

 @Override
 public void onCreate() {
  Log.v("Debug", " service creatd.........");
 }

 public void registerObserver() {

  contentResolver = getContentResolver();
  contentResolver.registerContentObserver(
    Uri.parse("content://mms-sms/conversations/"),
      true, new SMSObserver(new Handler()));
  Log.v("Debug", " in registerObserver method.........");
 }

 //start the service and register observer for lifetime
 @Override
 public int onStartCommand(Intent intent, int flags, int startId) {
  Log.v("Debug", "Service has been started..");
  Toast.makeText(getApplicationContext(),
    "Service has been started.. ",
    Toast.LENGTH_SHORT).show();
  registerObserver();

  return START_STICKY;
 }

 class SMSObserver extends ContentObserver{

  public SMSObserver(Handler handler) {
   super(handler);
  }

  //will be called when database get change
  @Override
  public void onChange(boolean selfChange) {
   super.onChange(selfChange);
   Log.v("Debug", "Observer has been started..");

  /*first of all we need to decide message is Text or MMS type.*/
   final String[] projection = new String[]{
     "_id", "ct_t"};
   Uri mainUri = Uri.parse(
     "content://mms-sms/conversations/");
   Cursor mainCursor = contentResolver.
     query(mainUri, projection,
     null, null, null);
   mainCursor.moveToFirst();

   String msgContentType = mainCursor.getString(mainCursor.
     getColumnIndex("ct_t"));
   if ("application/vnd.wap.multipart.related".
     equals(msgContentType)) {
    // it's MMS
          Log.v("Debug", "it's MMS");

          //now we need to decide MMS message is sent or received
          Uri mUri = Uri.parse("content://mms");
          Cursor mCursor = contentResolver.query(mUri, null, null,
            null, null);
          mCursor.moveToNext();
    int type = mCursor.getInt(mCursor.getColumnIndex("type"));

    if(type==1){
     //it's received MMS
     Log.v("Debug", "it's received MMS");
     getReceivedMMSinfo();
    }
    else if(type==2)
    {
     //it's sent MMS
     Log.v("Debug", "it's Sent MMS");
     getSentMMSinfo();
    }

   }
   else{
    // it's SMS
          Log.v("Debug", "it's SMS");

          //now we need to decide SMS message is sent or received
          Uri mUri = Uri.parse("content://sms");
          Cursor mCursor = contentResolver.query(mUri, null, null,
            null, null);
          mCursor.moveToNext();
    int type = mCursor.getInt(mCursor.getColumnIndex("type"));

    if(type==1){
     //it's received SMS
     Log.v("Debug", "it's received SMS");
     getReceivedSMSinfo();
    }
    else if(type==2)
    {
     //it's sent SMS
     Log.v("Debug", "it's sent SMS");
     getSentSMSinfo();
    }
   }//message content type block closed


  }//on changed closed


 /*now Methods start to getting details for sent-received SMS*/



  //method to get details about received SMS..........
  private void getReceivedSMSinfo() {
   Uri uri = Uri.parse("content://sms/inbox");
   String str = "";
   Cursor cursor = contentResolver.query(uri, null,
     null,null, null);
   cursor.moveToNext();

   // 1 = Received, etc.
   int type = cursor.getInt(cursor.
     getColumnIndex("type"));
   String msg_id= cursor.getString(cursor.
     getColumnIndex("_id"));
   String phone = cursor.getString(cursor.
     getColumnIndex("address"));
   String dateVal = cursor.getString(cursor.
     getColumnIndex("date"));
   String body = cursor.getString(cursor.
     getColumnIndex("body"));
   Date date = new Date(Long.valueOf(dateVal));

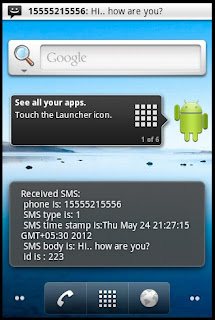

      str = "Received SMS: \n phone is: " + phone;
      str +="\n SMS type is: "+type;
   str +="\n SMS time stamp is:"+date;
   str +="\n SMS body is: "+body;
   str +="\n id is : "+msg_id;


   Log.v("Debug","Received SMS phone is: "+phone);
   Log.v("Debug","SMS type is: "+type);
   Log.v("Debug","SMS time stamp is:"+date);
   Log.v("Debug","SMS body is: "+body);
   Log.v("Debug","SMS id is: "+msg_id);

   Toast.makeText(getBaseContext(), str,
     Toast.LENGTH_SHORT).show();
   Log.v("Debug", "RDC : So we got all informaion " +
     "about SMS Received Message :) ");

  }

  //method to get details about Sent SMS...........
  private void getSentSMSinfo() {
   Uri uri = Uri.parse("content://sms/sent");
   String str = "";
   Cursor cursor = contentResolver.query(uri, null,
     null, null, null);
   cursor.moveToNext();

   // 2 = sent, etc.
   int type = cursor.getInt(cursor.
     getColumnIndex("type"));
   String msg_id= cursor.getString(cursor.
     getColumnIndex("_id"));
   String phone = cursor.getString(cursor.
     getColumnIndex("address"));
   String dateVal = cursor.getString(cursor.
     getColumnIndex("date"));
   String body = cursor.getString(cursor.
     getColumnIndex("body"));
   Date date = new Date(Long.valueOf(dateVal));

      str = "Sent SMS: \n phone is: " + phone;
      str +="\n SMS type is: "+type;
   str +="\n SMS time stamp is:"+date;
   str +="\n SMS body is: "+body;
   str +="\n id is : "+msg_id;


   Log.v("Debug","sent SMS phone is: "+phone);
   Log.v("Debug","SMS type is: "+type);
   Log.v("Debug","SMS time stamp is:"+date);
   Log.v("Debug","SMS body is: "+body);
   Log.v("Debug","SMS id is: "+msg_id);

   Toast.makeText(getBaseContext(), str,
     Toast.LENGTH_SHORT).show();
   Log.v("Debug", "RDC : So we got all informaion " +
     "about Sent SMS Message :) ");
  }


  /*now Methods start to getting details for sent-received MMS.*/

  // 1. method to get details about Received (inbox)  MMS...
  private void getReceivedMMSinfo() {
   Uri uri = Uri.parse("content://mms/inbox");
   String str = "";
   Cursor cursor = getContentResolver().query(uri, null,null,
     null, null);
   cursor.moveToNext();

   String mms_id= cursor.getString(cursor.
     getColumnIndex("_id"));
   String phone = cursor.getString(cursor.
     getColumnIndex("address"));
   String dateVal = cursor.getString(cursor.
     getColumnIndex("date"));
   Date date = new Date(Long.valueOf(dateVal));

   // 2 = sent, etc.
   int mtype = cursor.getInt(cursor.
     getColumnIndex("type"));
   String body="";

   Bitmap bitmap;

   String type = cursor.getString(cursor.
     getColumnIndex("ct"));
   if ("text/plain".equals(type)){
    String data = cursor.getString(cursor.
      getColumnIndex("body"));
    if(data != null){
      body = getReceivedMmsText(mms_id);
    }
    else {
                 body = cursor.getString(cursor.
                   getColumnIndex("text"));
                 //body text is stored here
             }
    }
   else if("image/jpeg".equals(type) ||
     "image/bmp".equals(type) ||
                 "image/gif".equals(type) ||
                 "image/jpg".equals(type) ||
                 "image/png".equals(type)){
     bitmap = getReceivedMmsImage(mms_id);
     //image is stored here
     //now we are storing on SDcard
     storeMmsImageOnSDcard(bitmap);
   }

      str = "Sent MMS: \n phone is: " + phone;
      str +="\n MMS type is: "+mtype;
   str +="\n MMS time stamp is:"+date;
   str +="\n MMS body is: "+body;
   str +="\n id is : "+mms_id;


   Log.v("Debug","sent MMS phone is: "+phone);
   Log.v("Debug","MMS type is: "+mtype);
   Log.v("Debug","MMS time stamp is:"+date);
   Log.v("Debug","MMS body is: "+body);
   Log.v("Debug","MMS id is: "+mms_id);

   Toast.makeText(getBaseContext(), str,
     Toast.LENGTH_SHORT).show();
   Log.v("Debug", "RDC : So we got all informaion " +
     "about Received MMS Message :) ");
  }




  //method to get Text body from Received MMS.........
  private String getReceivedMmsText(String id) {
      Uri partURI = Uri.parse("content://mms/inbox" + id);
      InputStream is = null;
      StringBuilder sb = new StringBuilder();
      try {
          is = getContentResolver().openInputStream(partURI);
          if (is != null) {
              InputStreamReader isr = new InputStreamReader(is,
                "UTF-8");
              BufferedReader reader = new BufferedReader(isr);
              String temp = reader.readLine();
              while (temp != null) {
                  sb.append(temp);
                  temp = reader.readLine();
              }
          }
      } catch (IOException e) {}
      finally {
          if (is != null) {
              try {
                  is.close();
              } catch (IOException e) {}
          }
      }
      return sb.toString();
  }

  //method to get image from Received MMS..............
  private Bitmap getReceivedMmsImage(String id) {


      Uri partURI = Uri.parse("content://mms/inbox" + id);
      InputStream is = null;
      Bitmap bitmap = null;
      try {
          is = getContentResolver().
            openInputStream(partURI);
          bitmap = BitmapFactory.decodeStream(is);
      } catch (IOException e) {}
      finally {
          if (is != null) {
              try {
                  is.close();
              } catch (IOException e) {}
          }
      }
      return bitmap;

  }

  //Storing image on SD Card
  private void storeMmsImageOnSDcard(Bitmap bitmap) {
   try {

    substr = "A " +k +".PNG";
    String extStorageDirectory = Environment.
      getExternalStorageDirectory().toString();
    File file = new File(extStorageDirectory, substr);
    OutputStream outStream = new FileOutputStream(file);
    bitmap.compress(Bitmap.CompressFormat.PNG,
      100,outStream);
    outStream.flush();
    outStream.close();

    Toast.makeText(getApplicationContext(), "Image Saved",
      Toast.LENGTH_LONG).show();
    Log.v("Debug", "Image seved sucessfully");
   }
   catch (FileNotFoundException e) {

    e.printStackTrace();
    Toast.makeText(getApplicationContext(),
      e.toString(),
      Toast.LENGTH_LONG).show();
   } catch (IOException e) {

    e.printStackTrace();
    Toast.makeText(getApplicationContext(),
      e.toString(),
      Toast.LENGTH_LONG).show();
   }
   k++;
  }



  /* .......methods to get details about Sent MMS.... */
  private void getSentMMSinfo() {


   Uri uri = Uri.parse("content://mms/sent");
   String str = "";
   Cursor cursor = getContentResolver().query(uri,
     null,null,
     null, null);
   cursor.moveToNext();

   String mms_id= cursor.getString(cursor.
     getColumnIndex("_id"));
   String phone = cursor.getString(cursor.
     getColumnIndex("address"));
   String dateVal = cursor.getString(cursor.
     getColumnIndex("date"));
   Date date = new Date(Long.valueOf(dateVal));
   // 2 = sent, etc.
   int mtype = cursor.getInt(cursor.
     getColumnIndex("type"));
   String body="";

   Bitmap bitmap;

   String type = cursor.getString(cursor.
     getColumnIndex("ct"));
   if ("text/plain".equals(type)){
    String data = cursor.getString(cursor.
      getColumnIndex("body"));
    if(data != null){
      body = getSentMmsText(mms_id);
    }
    else {
                 body = cursor.getString(cursor.
                   getColumnIndex("text"));
                 //body text is stored here
             }
    }
   else if("image/jpeg".equals(type) ||
     "image/bmp".equals(type) ||
                 "image/gif".equals(type) ||
                 "image/jpg".equals(type) ||
                 "image/png".equals(type)){
     bitmap = getSentMmsImage(mms_id);
     //image is stored here
     //now we are storing on SDcard
     storeMmsImageOnSDcard(bitmap);
   }

      str = "Sent MMS: \n phone is: " + phone;
      str +="\n MMS type is: "+mtype;
   str +="\n MMS time stamp is:"+date;
   str +="\n MMS body is: "+body;
   str +="\n id is : "+mms_id;


   Log.v("Debug","sent MMS phone is: "+phone);
   Log.v("Debug","MMS type is: "+mtype);
   Log.v("Debug","MMS time stamp is:"+date);
   Log.v("Debug","MMS body is: "+body);
   Log.v("Debug","MMS id is: "+mms_id);

   Toast.makeText(getBaseContext(), str,
     Toast.LENGTH_SHORT).show();
   Log.v("Debug", "RDC : So we got all informaion " +
     "about Sent MMS Message :) ");

  }


  //method to get Text body from Sent MMS............
  private String getSentMmsText(String id) {

      Uri partURI = Uri.parse("content://mms/sent" + id);
      InputStream is = null;
      StringBuilder sb = new StringBuilder();
      try {
          is = getContentResolver().openInputStream(partURI);
          if (is != null) {
              InputStreamReader isr = new InputStreamReader(is,
                "UTF-8");
              BufferedReader reader = new BufferedReader(isr);
              String temp = reader.readLine();
              while (temp != null) {
                  sb.append(temp);
                  temp = reader.readLine();
              }
          }
      } catch (IOException e) {}
      finally {
          if (is != null) {
              try {
                  is.close();
              } catch (IOException e) {}
          }
      }
      return sb.toString();

  }

  //method to get image from sent MMS............
  private Bitmap getSentMmsImage(String id) {

      Uri partURI = Uri.parse("content://mms/sent" + id);
      InputStream is = null;
      Bitmap bitmap = null;
      try {
          is = getContentResolver().
            openInputStream(partURI);
          bitmap = BitmapFactory.decodeStream(is);
      } catch (IOException e) {}
      finally {
          if (is != null) {
              try {
                  is.close();
              } catch (IOException e) {}
          }
      }
      return bitmap;

  }

 }//smsObserver class closed
}


dont forget to write entries for permissions and service

AndroidManifest.xml
































This code is tested on Emulator for SMS and output will be like this..
For Receiving Text SMS:

For Sending Text SMS:

Thanks!!

any suggestions will be appreciated :)

7 comments:

  1. how do you handle if message type is application/smil?

    String type = cursor.getString(cursor.
    getColumnIndex("ct"));
    if ("application/smil".equals(type)){
    //... parse smil
    }

    ReplyDelete
  2. The best tutorial ever got after googling...so many hours..

    Gr8 man

    ReplyDelete
  3. Great Explanation in simple way...
    Best Tutorial man..

    ReplyDelete
  4. Hello, I get a crash when setting the uri to content://mms-sms/conversations/. I can set it to content://mms-sms/conversations/simple?true but then I loose columns such as ct_t. Any ideas?

    ReplyDelete
  5. Great Tutorial man
    I have a query.if i try to clear the notification of the incoming sms with the id that I am getting.Is it possible?

    ReplyDelete
  6. any changes made in main.xml plz share thanks

    ReplyDelete
  7. Thanks c lot for this post help a lot.

    ReplyDelete
